TCL 505
Technical specifications

TCL 505
Key features
The photo gallery of TCL 505
TCL 505 click to zoomTCL 505 click to zoomTCL 505 click to zoom
  • Display features icon 6.75" IPS TFT  1600 x 720 px
    Aspect ratio: 20:9
  • Phone’s dimensions and size icon 168.29 x 76.67 x 8.32 mm  190.00 g
  • Basic cameras data icon 50 Mpx  Front: 5 Mpx
  • Battery data icon Li-Ion 5010 mAh
  • RAM memory icon 4 GB
  • Internal memory icon 128 GB
  • Processor model icon No data
  • Announcement date – calendar icon No data
  • Phone thickness and battery icon 602.16  C2T  Battery capacity to thickness ratio
  • Screen-to-body ratio icon 85.30%  Screen-to-body ratio
General data
Show variants (2)
Selected variant:
back icon
Brand TCL
TCLSmartphones
Model name 505
Predecessor TCL 405
Announced No data
Type Touch
Dimensions 168.29 x 76.67 x 8.32 mm
Weight 190.00 g Buy caseicon_info
Colour Available in 2 variants:
Ocean Blue Space Grey
Display Color / IPS TFT
16,7 millions colors, 90 Hz
1600 x 720 px (6.75") 260 ppi
max. luminance 400 nitów [cd/m²]
contrast 1500:1
∼85.3% screen-to-body ratio
Display protection No Buy screen protectoricon_info
Talk time (max.) No data
Stand-by (max.) No data
Standard battery Li-Ion 5010 mAh Buy powerbankicon_info
Quick battery charging No
Charger included in the package Yes Charger power 10 W icon_info
Wireless battery charging No
Internal memory 128 GB Buy memory cardicon_info
RAM memory 4 GB
Memory cards Yes microSD, microSDHC, microSDXC (up to 512 GB)
Operating system Android 14
Processor
Processor clock: 2.20 GHz
Standards GSM, UMTS, LTE
read more
Touchscreen Yes
DualSIM Available in 2 variants:
DualSIM SingleSIM
SIM card(s) Available in 2 variants:
nanoSIM, nanoSIM nanoSIM
DualSIM mode Available in 2 variants:
dual standby No
Hybrid DualSIM No
EAN Available in 2 variants:
4894461983257 4894461983264
MPN Available in 2 variants:
No T509K1
ADDITIONAL INFORMATION

ADDITIONAL INFORMATION

  • VoLTE, VoWiFi. NFC support depending on variant.

PICTURES FROM THIS PHONE

PICTURES FROM THIS PHONE

  • No photos added yet. Click here to add a photo.
CAMERAS - BACK

CAMERAS - BACK

First camera
  • Camera type
    Standard
  • Photo matrix
    50 Mpx
  • Sensor size
    1/2,55
  • Pixel size
    0,7 µm
  • Digital zoom
    Yes
  • Field of view
    79 °
  • Flash
    Yes LED
  • Video resolution
    1920x1080
  • Video formats
    H.264, H.265, MPEG4 - 30 fps
  • Additional
    AF, f/1.8
Second camera
  • Camera type
    Depth of field
  • Photo matrix
    2 Mpx
  • Sensor size
    1/5
  • Pixel size
    1,75 µm
  • Digital zoom
    Yes
  • Field of view
    88 °
  • Flash
    Yes LED
  • Additional
    FF, f/2.4
CAMERAS - FRONT

CAMERAS - FRONT

First camera
  • Photo matrix
    5 Mpx
  • Sensor size
    1/5
  • Pixel size
    1,12 µm
  • Digital zoom
    Yes
  • Field of view
    76 °
  • Flash
    No
  • Additional
    FF, f/2.2
SENSORS

SENSORS

  • Accelerometer
    Yes
  • Proximity
    No
  • Light
    No
  • Magnetometer
    No
  • Gyroscope
    No
  • Barometer
    No
  • Altimeter
    No
  • Gravity
    Yes
  • Hall-effect
    No
  • Iris scanner
    No
  • Fingerprint scanner
    Side
  • Thermometer
    No
  • Hygrometer
    No
DATA TRANSFER

DATA TRANSFER

  • HSDPA
    42.20 Mbit/s
  • HSUPA
    11.52 Mbit/s
  • HSPA
    Yes
  • HSPA+
    Yes
  • LTE DL
    150.80 Mbit/s
  • LTE UP
    51.00 Mbit/s
  • GPRS
    Yes
  • EDGE
    Yes
  • Bluetooth
    Yes v5.1
  • A2DP Profile
    Yes
  • WiFi
    Yes v802.11 a/b/g/n/ac
    read more
  • DLNA
    No
  • Infrared
    No
  • USB
    Yes v2.0 OTG
           Type-C     Buy adaptericon_info
  • GPS module
    Yes
  • A-GPS
    Yes
  • GLONASS support
    Yes
  • Beidou
    Yes
  • Galileo
    Yes
  • NFC
    Yes
COMMUNICATION AND MESSAGING

COMMUNICATION AND MESSAGING

  • Call waiting
    Yes
  • Conferency
    Yes
  • Call forwarding
    Yes
  • Push To Talk
    No
  • Instant Messenger
    Yes
  • SMS
    Yes
  • SMS Memory
    No data
  • MMS
    Yes
  • Dictionary
    Yes T9
  • e-mail client
    Yes
  • e-mail protocols
    POP3, IMAP4, SMTP
  • RSS Reader
    Yes
MULTIMEDIA

MULTIMEDIA

  • Radio
    No
  • MP3
    Yes
  • Stereo speakers
    2 speakers
  • Audio Jack
    3.5 mm Buy headphonesicon_info
  • HD Voice
    Yes
  • Sound formats
    AAC, AAC+, AMR, FLAC, MID, OGG, OPUS, WAV, eAAC+
  • Java
    Yes ART
  • Videophone
    No
PIM AND ADDITIONAL FUNCTIONS

PIM AND ADDITIONAL FUNCTIONS

  • Watch
    Yes
  • Stopwatch
    Yes
  • Alarm
    Yes
  • Calculator
    Yes
  • Organizer
    Yes
  • Calendar
    Yes
  • Flight mode
    Yes
  • Data and fax
    Yes
  • Voice dial
    Yes
  • Speakerphone
    Yes
  • Recorder
    Yes
  • Vibrations
    Yes
POPULARITY CHART

POPULARITY CHART

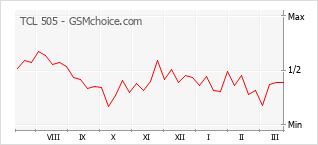

    Popularity chart of TCL 505
    Popularity chart of
    TCL 505

The photo gallery of TCL 505

Your rating

5,00
icon_info
General
5,00
Design
5,00
Features
5,00
Ratings: 1 |  Visits: 15916 |  Popularity: 0,01%
Opinions (0) Questions (0)
Ratings: 1 |  Visits: 15916 |  Popularity: 0,01%
To your site icon To your site
Add to bookmarks
Compare dataCompare data
Google logo Add as preferred
source in Google
Compare data Compare data Compare visually Compare visually To your site To your site
A D V E R T I S E M E N T
We do our best to present the proper and current information on this page. However, in case of finding any error in the data above please

FAQ - FREQUENTLY ASKED QUESTIONS

Inductive charging isn’t available in the TCL 505 model. The only way to charge the phone is with a conventional charger. Our advanced search will help you find phone models that support inductive charging.
Yes, TCL 505 allows for connecting headphones using a jack socket. You can enjoy music on this device with both wired headphones and Bluetooth headphones.
