TP-Link Neffos C5 Max
Technical specifications

Key features
  • Display features icon 5.5" IPS TFT  1080 x 1920 px
    Aspect ratio: 16:9
  • Phone’s dimensions and size icon 152.00 x 76.00 x 8.95 mm  161.00 g
  • Basic cameras data icon 13 Mpx  Front: 5 Mpx
  • Battery data icon Li-Ion 3045 mAh
  • RAM memory icon 2 GB
  • Internal memory icon 16 GB
  • Processor model icon MediaTek MT6753
  • Announcement date – calendar icon 4Q 2015
  • Phone thickness and battery icon 340.22  C2T  Battery capacity to thickness ratio
  • Screen-to-body ratio icon 72.20%  Screen-to-body ratio
Brand TP-Link
TP-LinkSmartphones
Model name Neffos C5 Max
Other names TP702A, TP702B, TP702C, TP702E
Announced 4Q 2015
Type Touch
Dimensions 152.00 x 76.00 x 8.95 mm
Weight 161.00 g Buy caseicon_info
Colour No data
Display Color / IPS TFT
16,7M colors
1080 x 1920 px (5.50") 401 ppi
∼72.2% screen-to-body ratio
Display protection Corning Gorilla Glass Buy screen protectoricon_info
Talk time (max.) No data
Stand-by (max.) No data
Standard battery Li-Ion 3045 mAh Buy powerbankicon_info
Quick battery charging No
Charger included in the package No data icon_info
Wireless battery charging No
Internal memory 16 GB Buy memory cardicon_info
RAM memory 2 GB
Memory cards Yes microSD, microSDHC (up to 32 GB)
Operating system Android 5.1 Lollipop
Processor
MediaTek MT6753
Processor clock: 1.30 GHz
Number of cores: 8
GPU: ARM Mali-T720 @450 MHz
Standards GSM, UMTS, LTE
read more
Touchscreen Yes
SAR (10g) 1,131 W/kg
DualSIM Yes
SIM card(s) microSIM, microSIM
DualSIM mode dual standby
Hybrid DualSIM No
ADDITIONAL INFORMATION

ADDITIONAL INFORMATION

  • The frequency depending on the version: TP702A: UMTS: 900, 2100; FDD LTE: 800, 900, 1800, 2100, 2600. TP702B: UMTS: 850, 900, 2100; FDD LTE: 700, 850, 1800, 2100, 2600. TP702C: UMTS: 850, 1700, 1900, 2100. FDD LTE: 700, 1700, 1900, 2600. TP702E: UMTS: 900, 2100.

PICTURES FROM THIS PHONE

PICTURES FROM THIS PHONE

CAMERAS - BACK

CAMERAS - BACK

First camera
  • Photo matrix
    13 Mpx
  • Resolution
    4128x3096 px
  • Digital zoom
    Yes
  • Flash
    2x LED
  • Video resolution
    1920x1080
  • Video formats
    MPEG4, H.263, H.264, H.265 - 30 fps
  • Additional
    AF, f/2.0
CAMERAS - FRONT

CAMERAS - FRONT

First camera
  • Photo matrix
    5 Mpx
  • Resolution
    2592x1944 px
  • Digital zoom
    Yes
  • Flash
    No
  • Video formats
    MPEG4, H.263, H.264, H.265 - 30 fps
  • Additional
    FF
SENSORS

SENSORS

  • Accelerometer
    Yes
  • Proximity
    Yes
  • Light
    Yes
  • Magnetometer
    Yes
  • Gyroscope
    No
  • Barometer
    No
  • Altimeter
    Yes
  • Gravity
    Yes
  • Hall-effect
    No
  • Iris scanner
    No
  • Fingerprint scanner
    No
  • Thermometer
    No
  • Hygrometer
    No
DATA TRANSFER

DATA TRANSFER

  • HSDPA
    42.00 Mbit/s
  • HSUPA
    11.00 Mbit/s
  • HSPA
    Yes
  • HSPA+
    Yes
  • LTE DL
    150.80 Mbit/s
  • LTE UP
    51.00 Mbit/s
  • GPRS
    Yes
  • EDGE
    Yes
  • Bluetooth
    Yes v4.0
  • A2DP Profile
    Yes
  • WiFi
    Yes v802.11 b/g/n
    read more
  • DLNA
    No
  • Infrared
    No
  • USB
  • GPS module
    Yes
  • A-GPS
    Yes
  • GLONASS support
    Yes
COMMUNICATION AND MESSAGING

COMMUNICATION AND MESSAGING

  • Call waiting
    Yes
  • Conferency
    Yes
  • Call forwarding
    Yes
  • Push To Talk
    No
  • Instant Messenger
    Yes
  • SMS
    Yes
  • SMS Memory
    No data
  • MMS
    Yes
  • Dictionary
    Yes XT9
  • e-mail client
    Yes
  • e-mail protocols
    POP3, IMAP4, SMTP
  • RSS Reader
    Yes
MULTIMEDIA

MULTIMEDIA

  • Radio
    Yes
  • MP3
    Yes
  • Stereo speakers
    No
  • Audio Jack
    3.5 mm Buy headphonesicon_info
  • HD Voice
    No
  • Sound formats
    3GP, FLAC, MIDI, OGG, WAV
  • Java
    Yes ART
  • Videophone
    No
PIM AND ADDITIONAL FUNCTIONS

PIM AND ADDITIONAL FUNCTIONS

  • Watch
    Yes
  • Stopwatch
    Yes
  • Alarm
    Yes
  • Calculator
    Yes
  • Organizer
    Yes
  • Calendar
    Yes
  • Flight mode
    Yes
  • Data and fax
    Yes
  • Voice dial
    Yes
  • Speakerphone
    Yes
  • Recorder
    Yes
  • Vibrations
    Yes
POPULARITY CHART

POPULARITY CHART

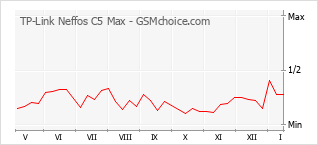

    Popularity chart of TP-Link Neffos C5 Max
    Popularity chart of
    TP-Link Neffos C5 Max

Your rating

7,08
icon_info
General
7,08
Design
7,01
Features
7,16
Ratings: 57 |  Visits: 68765 |  Popularity: 0,00%
Ratings: 57 |  Visits: 68765 |  Popularity: 0,00%
A D V E R T I S E M E N T
We do our best to present the proper and current information on this page. However, in case of finding any error in the data above please

FAQ - FREQUENTLY ASKED QUESTIONS

TP-Link Neffos C5 Max doesn’t have the option for inductive charging. It is only possible to charge using a traditional charger. Our advanced search will help you find phone models that support inductive charging.
Indeed, TP-Link Neffos C5 Max supports the use of wired headphones through a jack socket. The user is therefore not limited to using only Bluetooth headphones.
