TCL Plex
Technical specifications

Brand TCL
TCL Smartphones
Model name Plex
GSM frequencies 850 900 1800 1900
Standard UMTS 850 900 1900 2100
Standard LTE FDD LTE: 2100, 1800, 850, 2600, 900, 800, 700
TDD LTE: 2600, 2300
Type Touch
Dimensions (W x H x D) 162.20 x 76.56 x 7.99 mm
Weight 192.00 g
Display Color / IPS TFT
16M colors
1080 x 2340 px (6.53") 395 ppi
∼84.3% screen-to-body ratio
Display protection
Talk time (max.) 2G: 720 min. (12.0 h)
3G: 900 min. (15.0 h)
4G: 990 min. (16.5 h)
Stand-by (max.) 3G: 396 h (16.5 days)
Standard battery Li-Ion 3820 mAh
Quick battery charging Quick Charge 3.0
Wireless battery charging
Phonebook memory
Internal memory 128 GB
End-user memory 109 GB
RAM memory 6 GB
Memory cards
microSD, microSDHC, microSDXC (up to 256 GB)
Operating system Android 9.0 Pie
Processor
Qualcomm Snapdragon 675
Processor clock: 2.00 GHz
Number of cores: 8
GPU: Adreno 612
Touchscreen
DualSIM
SIM card standard nanoSIM
Announced 3Q 2019

ADDITIONAL INFORMATION

  • Rear & front camera:

    • 1. 48 Mpx, 6P lens, 1/2" sensor size, 0.8 µm pixel size, 79° FoV
    • 2. 16 Mpx, 5P lens, 1/3" sensor size, 1.0 µm pixel size, 123° FoV
    • 3. 2 Mpx, 5P lens, 1/2.8" sensor size, 2.9 µm pixel size, 77° FoV
    • 4. 24 Mpx, 5P lens, 1/2.8" sensor size, 0.9 µm pixel size, 78.2° FoV
    Smart PA audio chipset. NXP9890 audio amplifier. Apt-X support, LDAC.

PICTURES FROM THIS PHONE

  • No photos added yet. Click here to add a photo.

CAMERAS - BACK

First camera
  • Photo sensor model
    Sony IMX582
  • Photo matrix
    48 Mpx
  • Resolution
    8000x6000 px
  • Optical zoom

  • Digital zoom
    4x
  • Flash
    2x LED
  • Dual-colour LED flash

  • Video resolution
    3840x2160
  • Video formats
    H.263, H.264, H.265, MPEG4 - 30 fps
  • Additional
    AF, f/1.8
Second camera
  • Photo sensor model
    Samsung S5K3P9
  • Photo matrix
    16 Mpx
  • Resolution
    4640x3488 px
  • Optical zoom

  • Digital zoom

  • Flash
    2x LED
  • Dual-colour LED flash

  • Video resolution
  • Video formats
    H.263, H.264, H.265, MPEG4 - 30 fps
  • Additional
    FF, f/2.4
Third camera
  • Photo sensor model
    OmniVision OV02K
  • Photo matrix
    2 Mpx
  • Resolution
    1600x1200 px
  • Optical zoom

  • Digital zoom

  • Flash
    2x LED
  • Dual-colour LED flash

  • Video resolution
  • Video formats
    H.263, H.264, H.265, MPEG4 - 30 fps
  • Additional
    FF

CAMERAS - FRONT

First camera
  • Photo sensor model
    OmniVision OV24B
  • Photo matrix
    24 Mpx
  • Resolution
    5664x4248 px
  • Optical zoom

  • Digital zoom

  • Flash

  • Dual-colour LED flash

  • Video resolution
    1920x1080
  • Video formats
    H.263, H.264, H.265, MPEG4 - 30 fps
  • Additional
    FF

SENSORS

  • Accelerometer

  • Proximity

  • Light

  • Magnetometer

  • Gyroscope

  • Barometer

  • Altimeter

  • Gravity

  • Hall-effect

  • Iris scanner

  • Fingerprint scanner

  • Thermometer

  • Hygrometer


DATA TRANSFER

  • xHTML

  • WAP
      v2.0
  • HSCSD

  • HSDPA
     42.20 Mbit/s
  • HSUPA
     5.76 Mbit/s
  • HSPA

  • HSPA+

  • LTE DL
    391.70 Mbit/s
  • LTE UP
    75.40 Mbit/s
  • GPRS

  • EDGE

  • Bluetooth
      v5.0
  • A2DP Profile

  • WiFi
      v802.11 a/b/g/n/ac
  • WiFi frequencies
    2.4 i 5 GHz
  • WiFi Direct

  • WiFi Display

  • DLNA

  • Hotspot WiFi

  • IrDA

  • USB
      v2.0 OTG
          Type-C
  • GPS module

  • A-GPS

  • NFC


COMMUNICATION AND MESSAGING

  • Call waiting

  • Conferency

  • Call forwarding

  • Push To Talk

  • Instant Messenger

  • SMS

  • SMS Memory

  • EMS

  • MMS

  • Dictionary
     T9
  • e-mail client

  • e-mail protocols
    POP3, IMAP4, SMTP
  • Hardware QWERTY

  • RSS Reader


MULTIMEDIA

  • Radio

  • MP3

  • Stereo speakers

  • Audio Jack
    3.5 mm
  • HD Voice

  • Sound formats
    AAC, AAC+, AMR, FLAC, MID, OGG, WAV, eAAC+
  • Polyphony

  • Video ringtone

  • Ring composer

  • Games

  • Java
      ART
  • Videophone

  • DVB-H television

  • TV-Out


PIM AND ADDITIONAL FUNCTIONS

  • Watch

  • Stopwatch

  • Alarm

  • Calculator

  • Currency converter

  • Organizer

  • Calendar

  • Flight mode

  • SyncML

  • Data and fax

  • Screensaver

  • Themes

  • Interchangeable covers

  • Voice dial

  • Speakerphone

  • Recorder

  • Vibra

Your rating
0,00
Design 0,00
Features 0,00
Ratings:  |  Visits: 512 |  Popularity: 0,01%
A D V E R T I S E M E N T

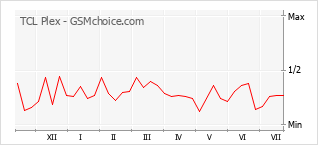

Popularity chart of TCL Plex
